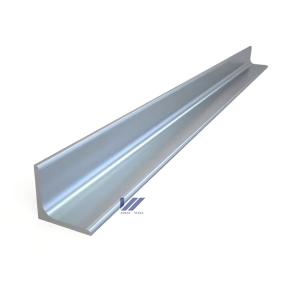

Angle steel profile 304 316 angle Stainless steel angle for building brackets
Specification classification
Equilateral stainless steel angle:
The two sides are equal in length and the angle is 90 degrees. Common specifications include 25mm×25mm, 30mm×30mm, 40mm×40mm, etc.
Unequal side stainless steel angle:
The two sides are unequal in length and the angle is also 90 degrees. Various specifications, such as 32mm×25mm, 45mm×30mm, etc.
Advantages
Strong corrosion resistance, long service life
High strength, large load-bearing capacity
Good processing performance, easy to form and install
Beautiful and durable, improving the overall quality of buildings and equipment
Application fields
Architecture:
In building structures, stainless steel angles can be used to build frames, support beams, etc.
It can be used as decorative materials such as stair handrails, railings, curtain wall keels, etc. to add beauty and modernity to buildings
Mechanical manufacturing:
It is used to manufacture frames, bases, shells and other parts of various mechanical equipment. It has high strength and good corrosion resistance and can adapt to various harsh working environments
Transportation:
In the manufacture of vehicles such as cars, trains, and ships, it is used to make body structures, frames, handrails and other parts
Our advantages
- Manufacturer direct sales for more than 20 years of production and operation
- Small batch production is acceptable
- Passed international standard quality inspection
- 7*24 hours professional team service
- The fastest delivery time is as short as seven days
- One-stop sales service to ensure after-sales level
304 stainless steel angle stock size table
| Drawing Equal angle(Axt) |
| Size(mm) | Theoretical weight
(kg/m) | Size(mm) | Theoretical weight
(kg/m) | Size(mm) | Theoretical weight
(kg/m) |
| 25x3 | 1.124 | 75x7 | 7.976 | 110x14 | 22.809 |
| 25x4 | 1.459 | 75x8 | 9.03 | 125x8 | 15.504 |
| 30x3 | 1.373 | 75x10 | 11.089 | 125x10 | 19.133 |
| 30x4 | 1.786 | 80x6 | 7.376 | 125x12 | 22.696 |
| 40x3 | 1.852 | 80x7 | 8.525 | 125x14 | 26.193 |
| 40x4 | 2.422 | 80x8 | 9.658 | 140x10 | 21.488 |
| 40x5 | 2.976 | 80x10 | 11.874 | 140x12 | 25.522 |
| 50x4 | 3.059 | 90x6 | 8.35 | 140x14 | 29.49 |
| 50x5 | 3.77 | 90x7 | 9.656 | 140x16 | 35.393 |
| 50x6 | 4.465 | 90x8 | 10.946 | 160x10 | 24.729 |
| 60x5 | 4.52 | 90x10 | 13.476 | 160x12 | 29.391 |
| 60x6 | 5.42 | 90x12 | 15.94 | 160x14 | 33.987 |
| 63x5 | 4.822 | 100x6 | 9.366 | 160x16 | 38.518 |
| 63x6 | 5.721 | 100x7 | 10.83 | 180x12 | 33.159 |
| 63x8 | 7.469 | 100x8 | 12.276 | 180x14 | 38.383 |
| 63x10 | 9.151 | 100x10 | 15.12 | 180x16 | 43.542 |
| 70x5 | 5.397 | 100x12 | 20.611 | 180x185 | 48.634 |
| 70x6 | 6.406 | 100x16 | 23.257 | 200x14 | 42.894 |
| 70x7 | 7.398 | 110x7 | 11.928 | 200x16 | 48.68 |
| 70x8 | 8.373 | 110x8 | 13.532 | 200x18 | 54.401 |
| 75x5 | 5.818 | 110x10 | 16.69 | 200x20 | 60.056 |
Chemical composition table of stainless steel angle
| Grade | Chemical Composition (%) |
| | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0.15 | ≤1.00 | 5.5~7.5 | ≤0.060 | ≤0.030 | 3.50~5.50 | 16.00~18.00 | |
| 301 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 6.00~8.00 | 16.00~18.00 | |
| 302 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 8.00~10.00 | 17.00~19.00 | |
| 304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 8.00~10.50 | 18.00~20.00 | - |
| 304L | ≤0.030 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 9.00~13.50 | 18.00~20.00 | - |
| 316 | ≤0.045 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 10.00~14.00 | 10.00~18.00 | 2.00~3.00 |
| 316L | ≤0.030 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 12.00~15.00 | 16.00~18.00 | 2.00~3.00 |
Manufacturing capacity
EDEST STEEL have more than ten years stainless steel products exporting experience, with full range of product lines, including stainless steel bars, profiles, pipes and tubes, stainless steel strips and sheets etc. We have rofessional sales and service teams with our own processing center, enough inventory to make sure fast delivery, products can also be customized. We're aiming to provide customer a One-stop service.
Our commitment
our price may not be the lowest, but we adhere to the "quality first, service first" Our price is reasonable, we will be your most satisfied supplier in China
If you have any questions, please feel free to contact us! We are committed to providing you with the best products at the most reasonable prices, always providing our best service.
